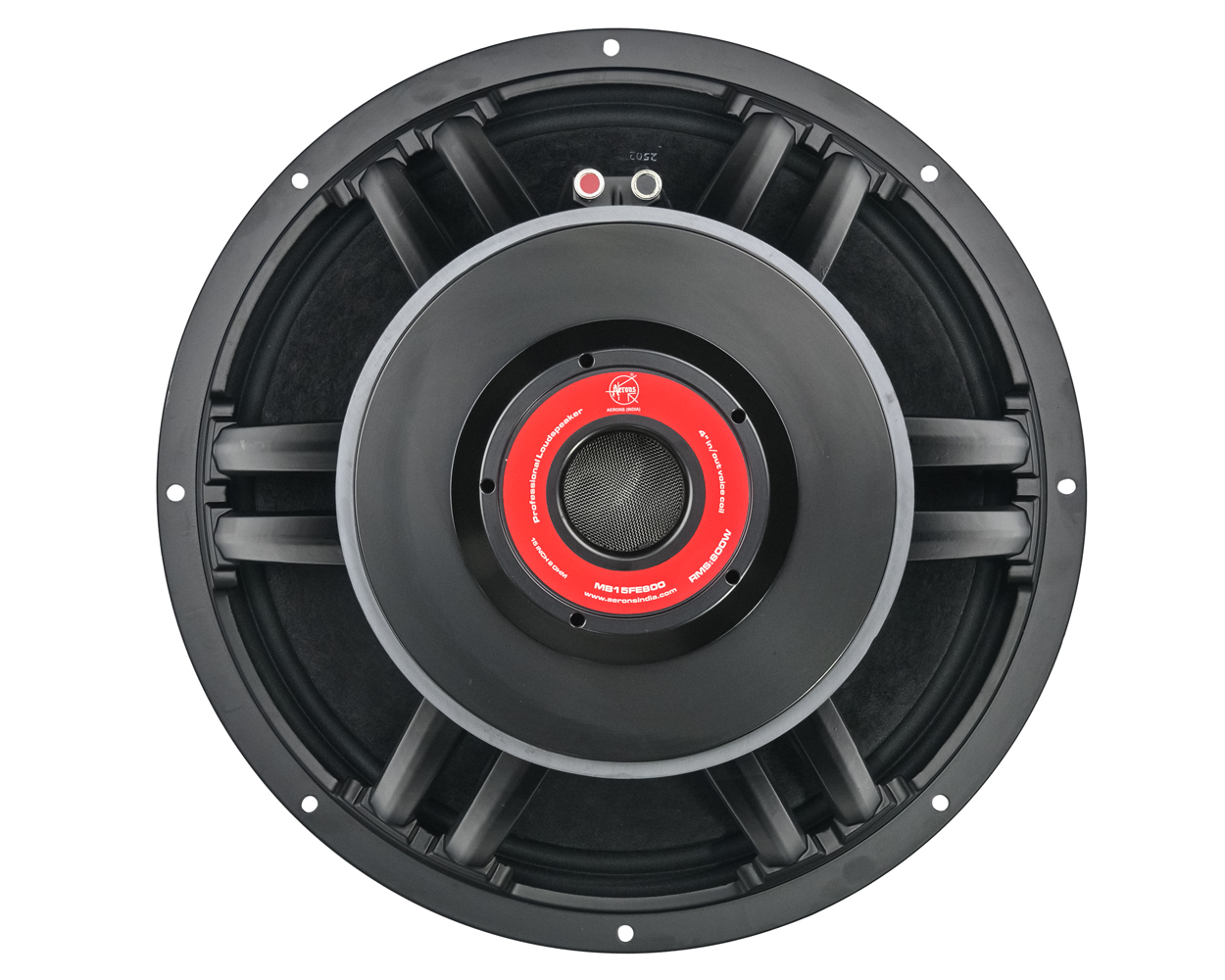

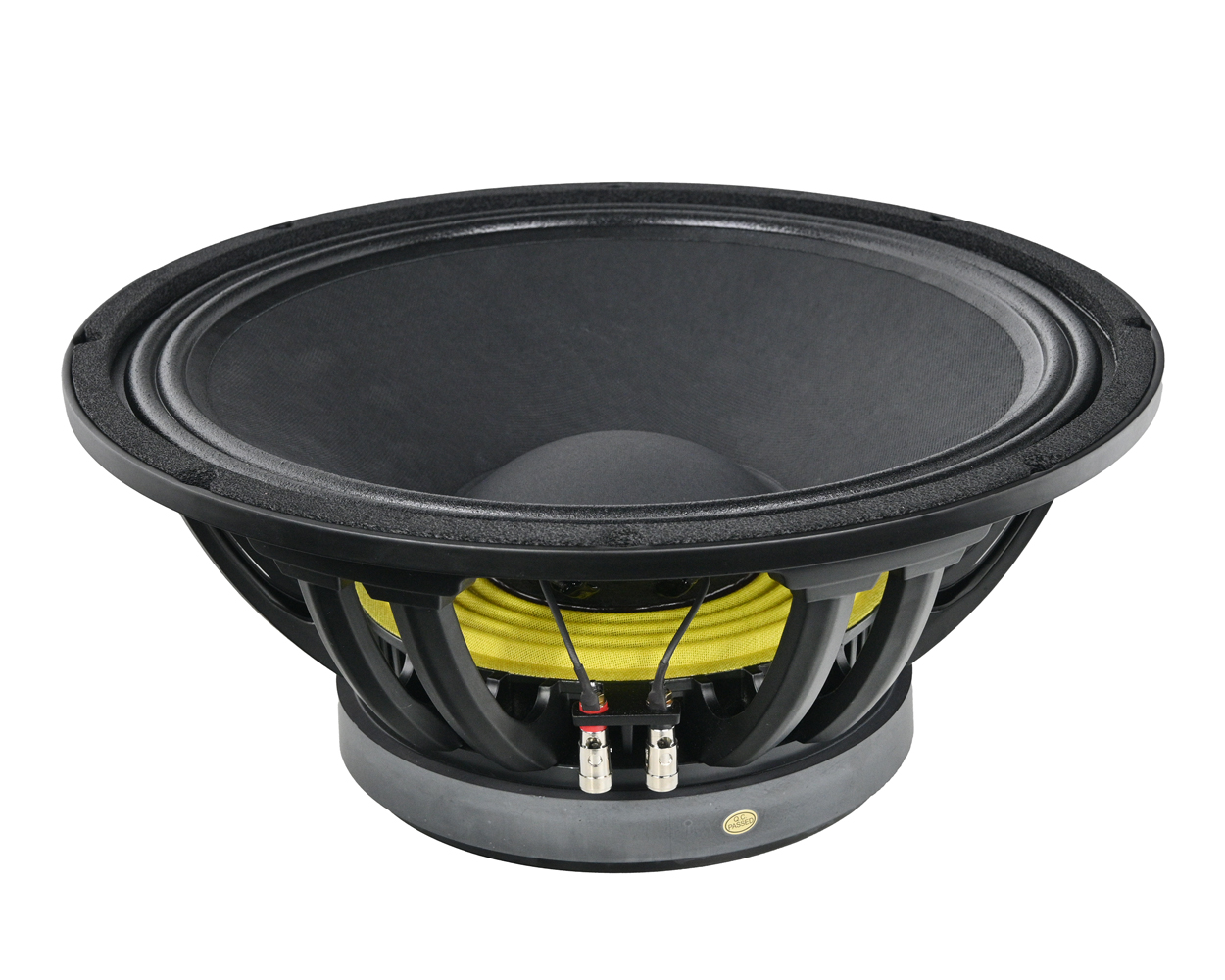

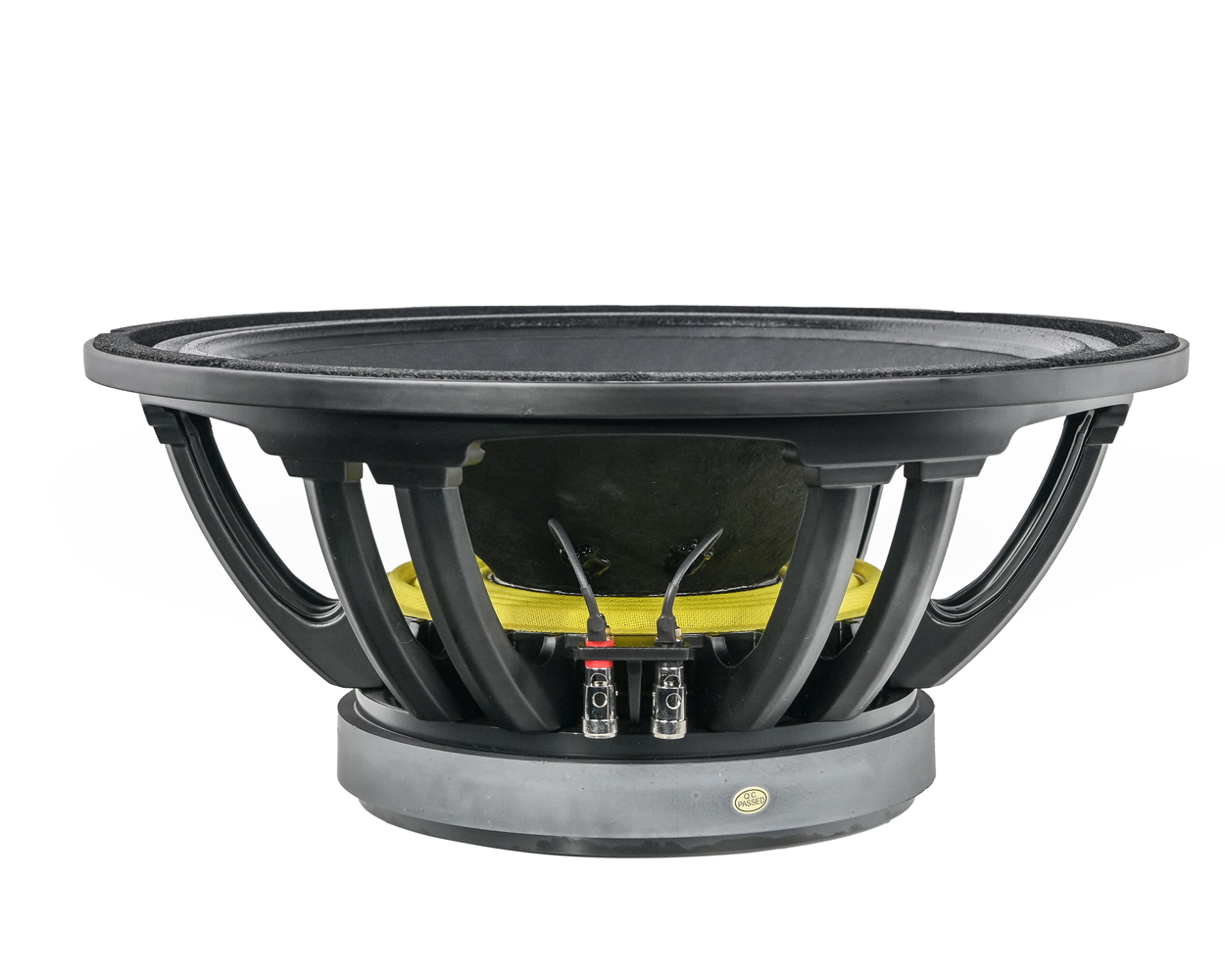

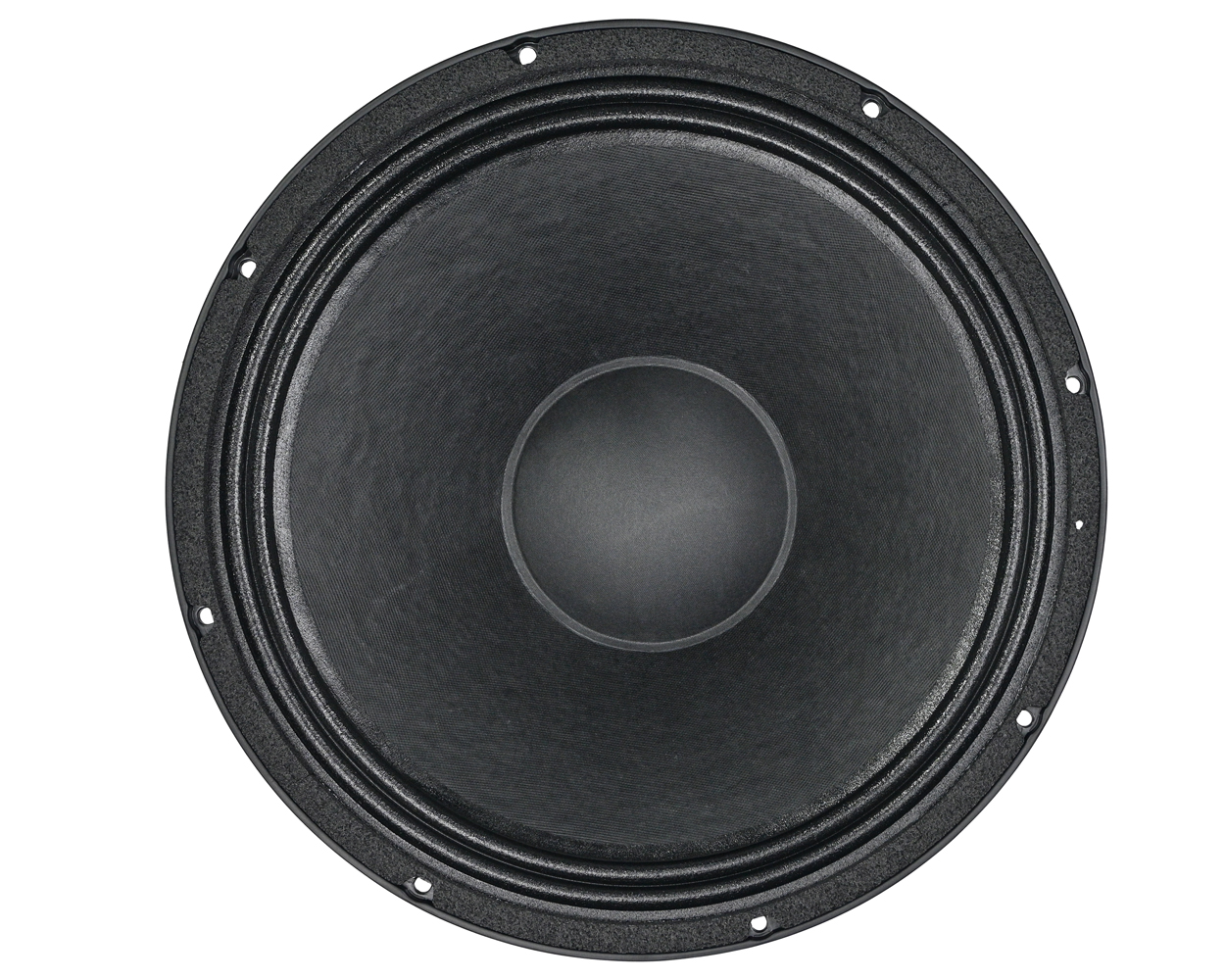

MB15FE800 – 15" Professional Speaker
Unleash the Power of Pure Sound
The MB15FE800 from Aerons India is a high-performance 15-inch speaker built for demanding audio environments. Designed with precision and durability in mind, it delivers powerful bass response and exceptional clarity across a wide frequency range. Whether used in live sound setups, DJ rigs, or custom speaker cabinets, this speaker ensures consistent performance and reliability.
Specifications:
Applications:
Ideal for professional audio systems, stage monitors, and high-output speaker enclosures. The MB15FE800 is engineered to meet the needs of sound professionals who demand precision, power, and long-term performance.
|
Nominal Diameter |
15inch |
|
Nominal Impedance |
8ohm |
|
Minimum Impedance |
7ohm |
|
Nominal Power Handling |
800Watts |
|
Continuous Power Handling |
1600Watts |
|
Sensitivity |
96.7dB |
|
Frequency Range |
40-3000Hz |
|
Voice-coil Diameter |
100mm |
|
Voice-coil Material |
CCAW |
|
Kind of layer |
In/out |
|
Number of layers |
2 |
|
Magnet Diameter |
220*25mm |
|
Magnet Material |
Ferrite |
|
Magnet Grade |
Y35 |
|
Resonance Frequency |
Fs |
40Hz |
|
DC Resistance |
Rte |
7ohm |
|
Mechanical Factor |
Qms |
9.21 |
|
Electrical Factor |
Qes |
0.4 |
|
Total Factor |
Qts |
0.38 |
|
BL Factor |
BL |
18.3 T-m |
|
Effective Moving Mass |
Mms |
102.9gr |
|
Equivalent Cas Air Load |
Vas |
183.53liter |
|
Effective Piston Area |
Sd |
0.9 m’2 |
|
Max. Linear Excursion |
Xmax |
13.7mm |
|
Compliance Value |
Cms |
0.15mm |
|
Overall Diameter |
397mm |
|
Buffer Cut-out Dia. |
360mm |
|
Bolt Circle Dia. |
377mm |
|
Bolt Hole Dia. |
6.5mm |
|
Gasket Thickness |
14mm |
|
Overall Depth |
180mm |
|
Magnet Dia. |
280mm |
|
Net Weight |
11.1 kg |
