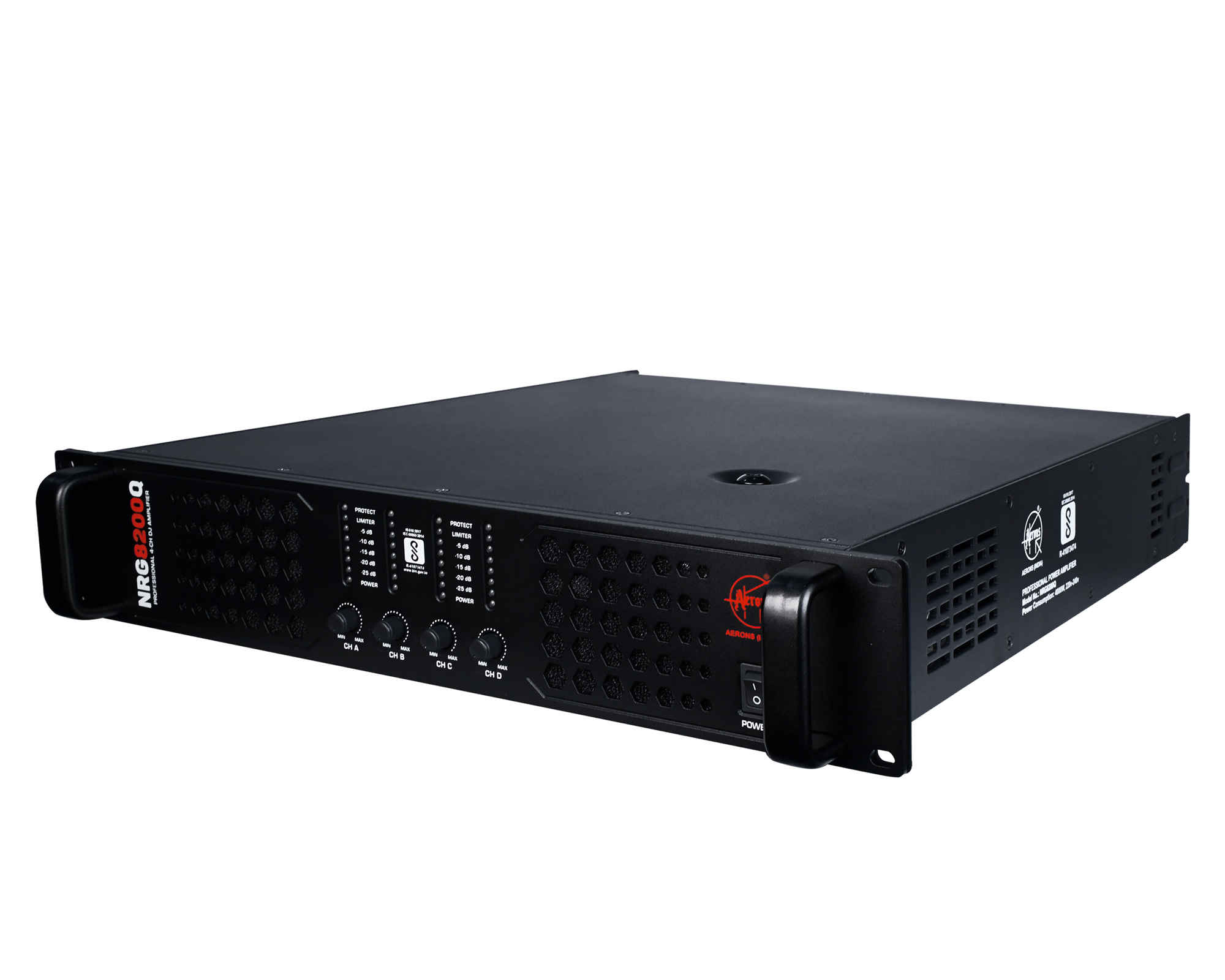

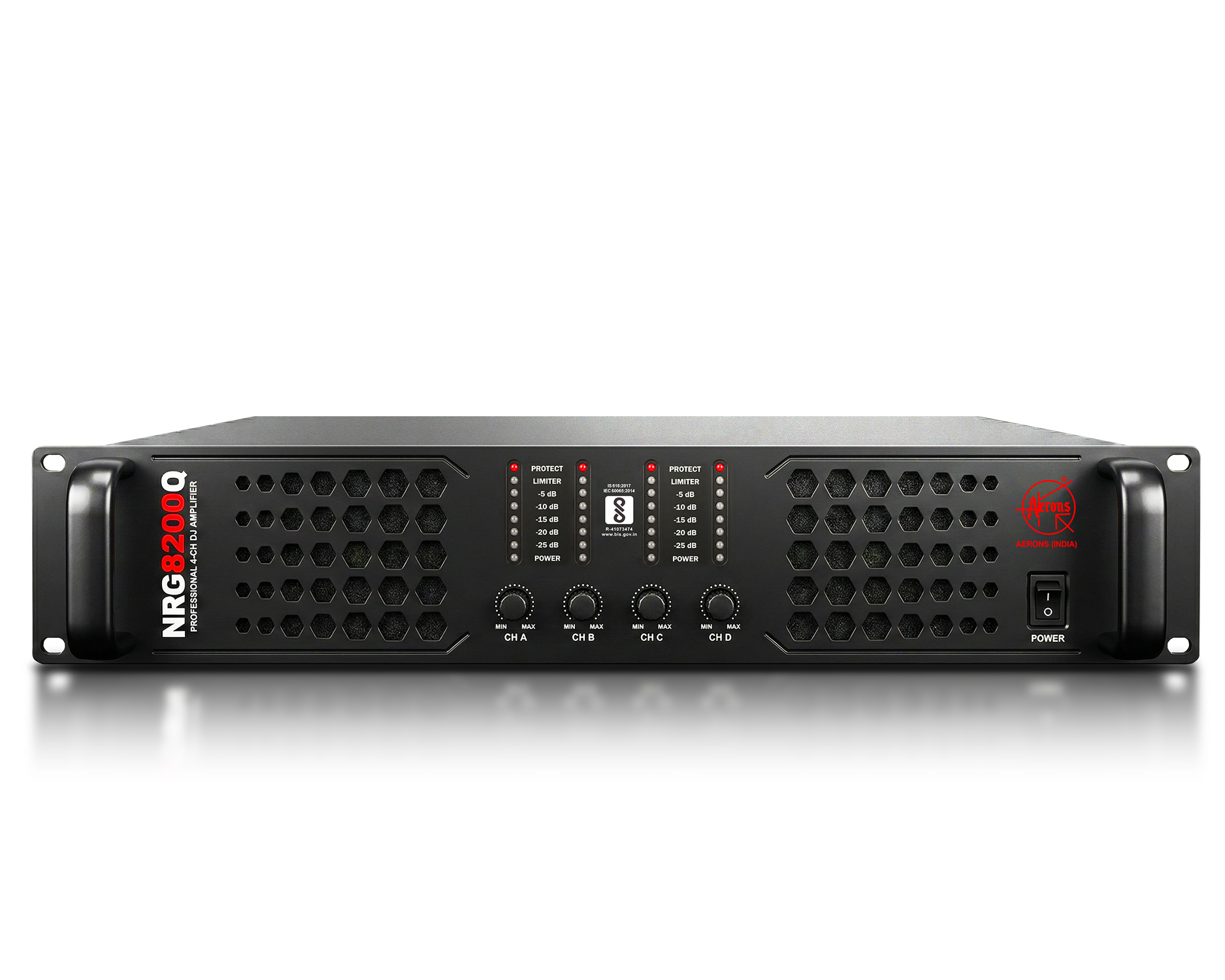

The NRG 8200Q is a high-performance 4-channel professional DJ power amplifier designed to deliver exceptional power, stability, and reliability for demanding live sound and professional audio applications. Built with advanced Class H+ amplification technology, it ensures high efficiency, strong output, and consistent performance even under heavy loads.
Delivering an impressive 1100W per channel at 8 ohms, 1750W per channel at 4 ohms, and up to 3000W in bridge mode, the NRG 8200Q is perfectly suited for driving large PA systems, subwoofers, and line array setups. Its robust construction, intelligent protection and limiter indicators, and precise channel controls make it a dependable choice for DJs, rental companies, and sound professionals.
With its powerful output, multi-channel flexibility, and professional-grade design, the Aerons NRG 8200Q stands out as a reliable amplifier built to handle high-energy performances with confidence and clarity.
|
Power Rating |
8Ω Stereo Power : |
4 x 1100W |
|
|
4Ω Stereo Power : |
4 x 1750W |
|
|
8Ω Bridge Power |
2 x 3000W |
|
Technical Parameters |
Frequency Response (1w@8Ω) : |
20Hz-20kHz (+-0.5dB) |
|
|
Output Circuity: |
CLASS H+ |
|
|
THD+N (20Hz-20kHz for 1W ): |
≤0.05% |
|
|
S/N Ratio: |
≥105dB |
|
|
Damping factor : |
≥500 |
|
|
Slew Rate : |
60v/μs |
|
|
Crosstalk : |
≥65dB |
|
|
Capacitors: |
80v/ 12000mfd x 16 pcs |
|
Input/Output Section |
Input Sensitivity : |
0.77v or 1.44v |
|
|
Input Impedance : |
≥20 kΩ Balanced |
|
|
|
≥10 kΩ Unbalanced |
|
|
Rear Panel Controls : |
Sensitivity, mode |
|
|

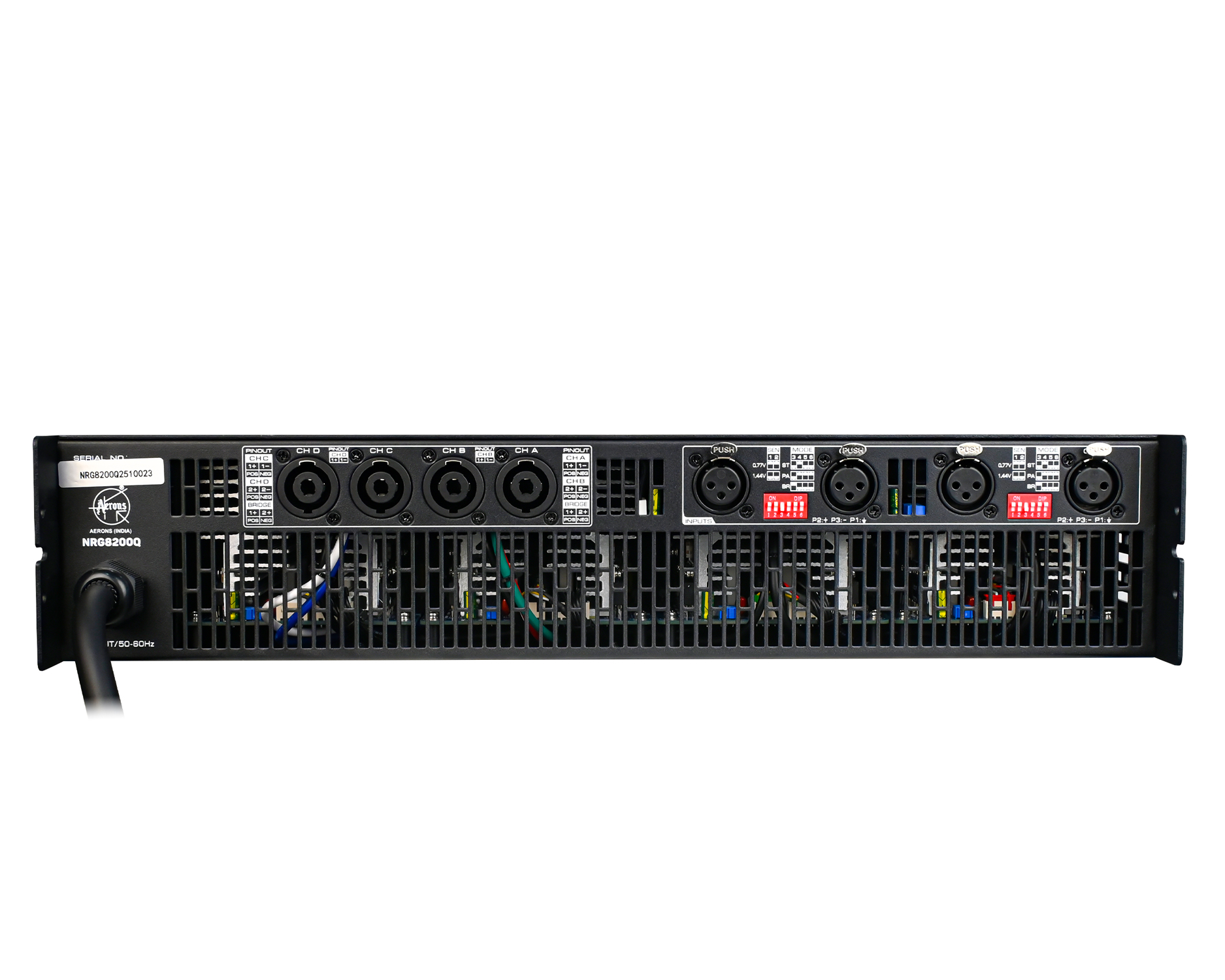

Output Connectors: |
4 x NL4 , SpeakOn |
|
Safety |
Protections : |
DC Protection Short Circuit Protection Smart Overheat Management Overheat Protection Input Output Overload Protection Soft Startup Protection Limiter Protection |
|
Cooling |
Cooling Fans: |
4 High Speed Fans |
|
|
Ventilation : |
Front to Back Ventilation |
|
Power Section |
Power Requirements: |
25A/230V |
|
|
Peak output Voltage : |
128V |
|
|
Working Voltage : |
AC 200V-245V |
|
Size and Weight |
Dimensions : |
483 x 475 x 88 |
|
|
Net Weight : |
22.85 Kgs |
|
|
Gross Weight : |
25.35 Kgs |
