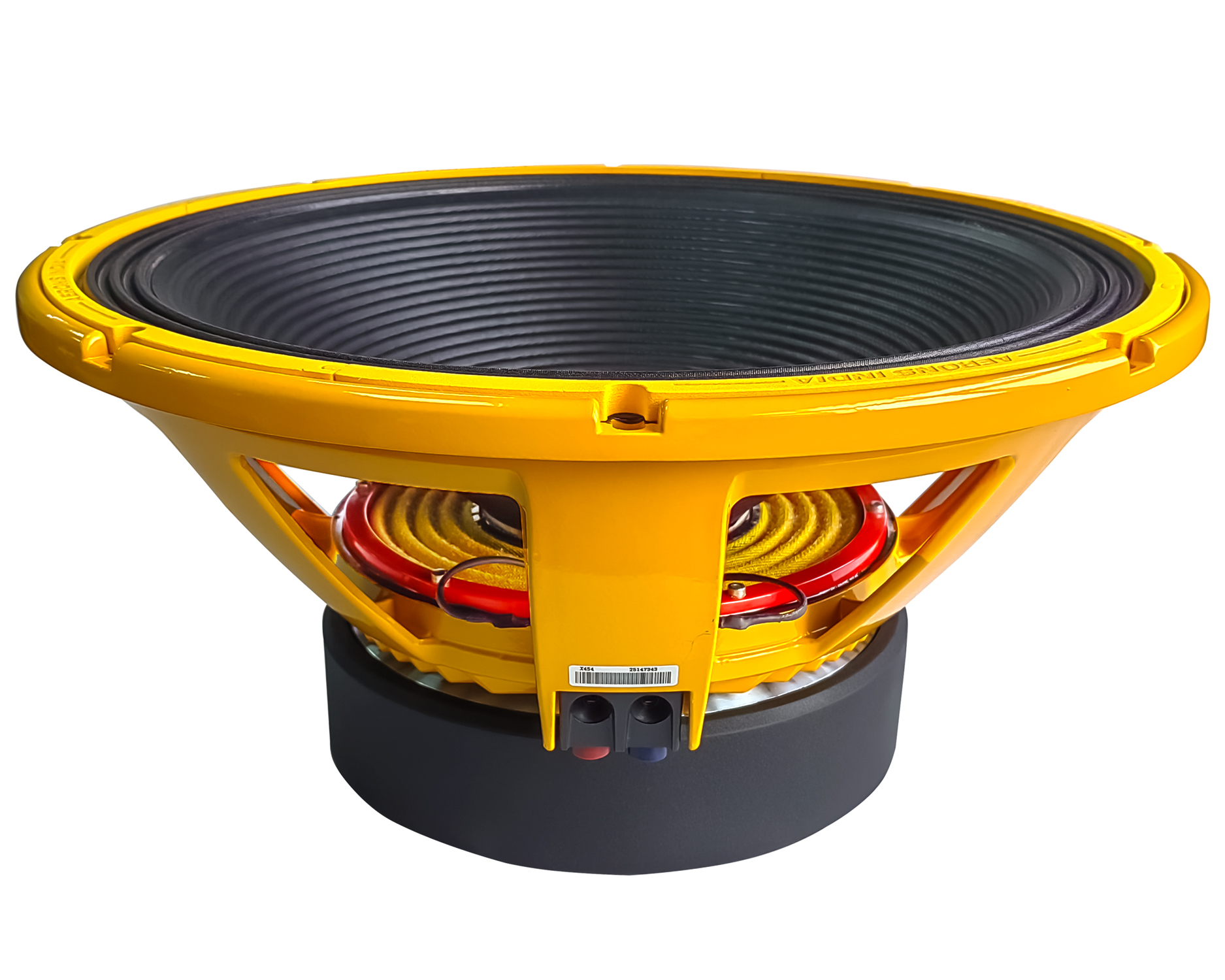

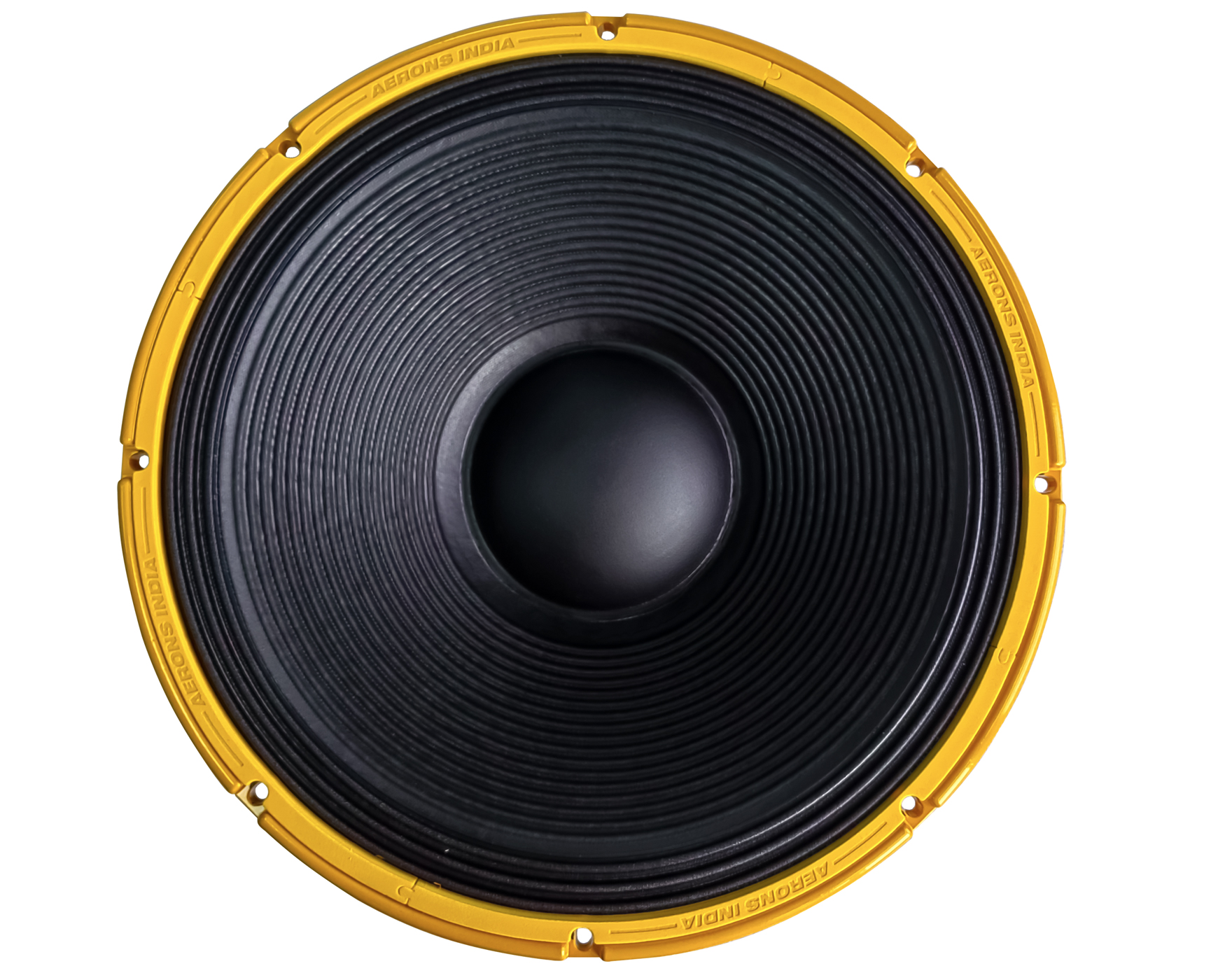

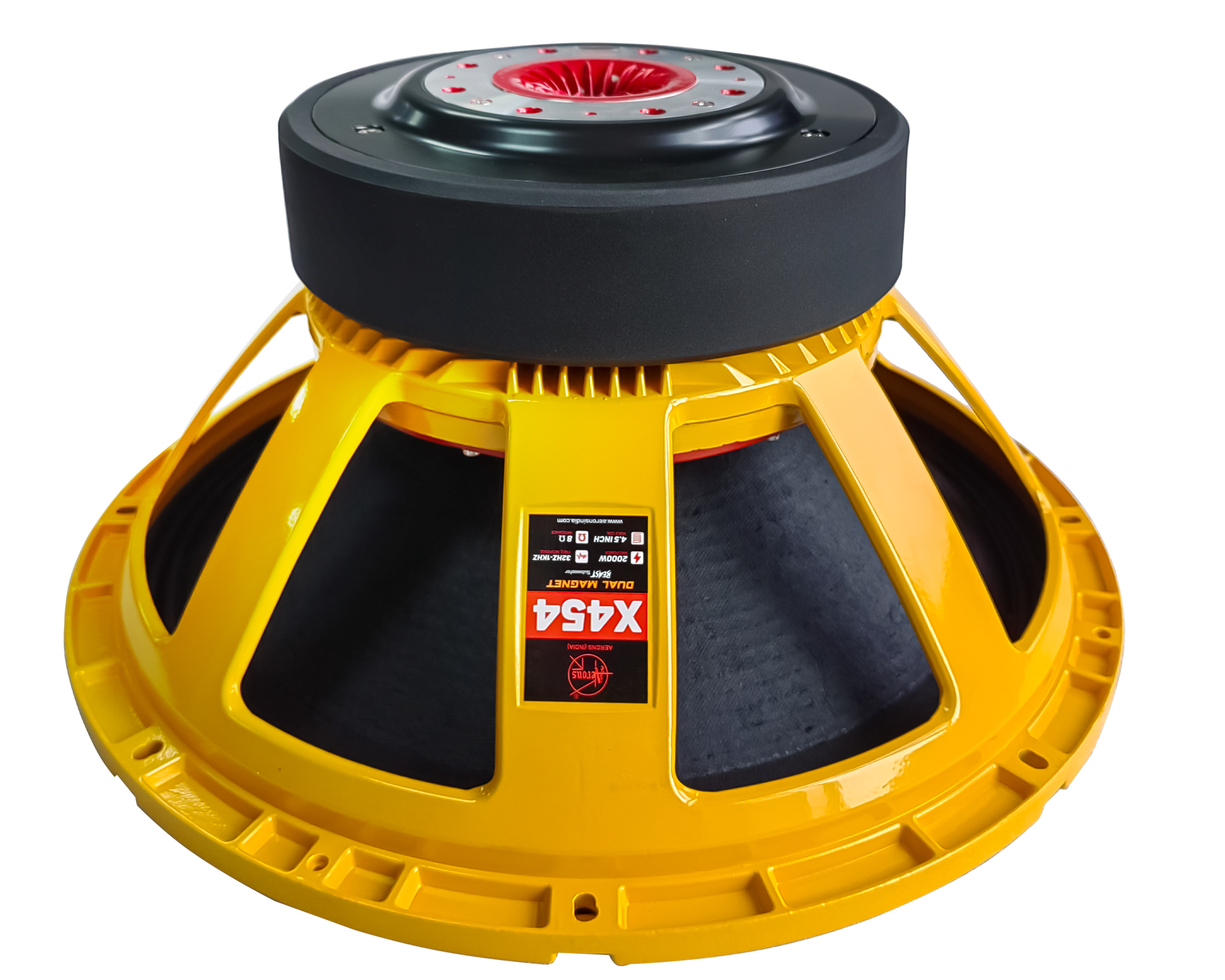

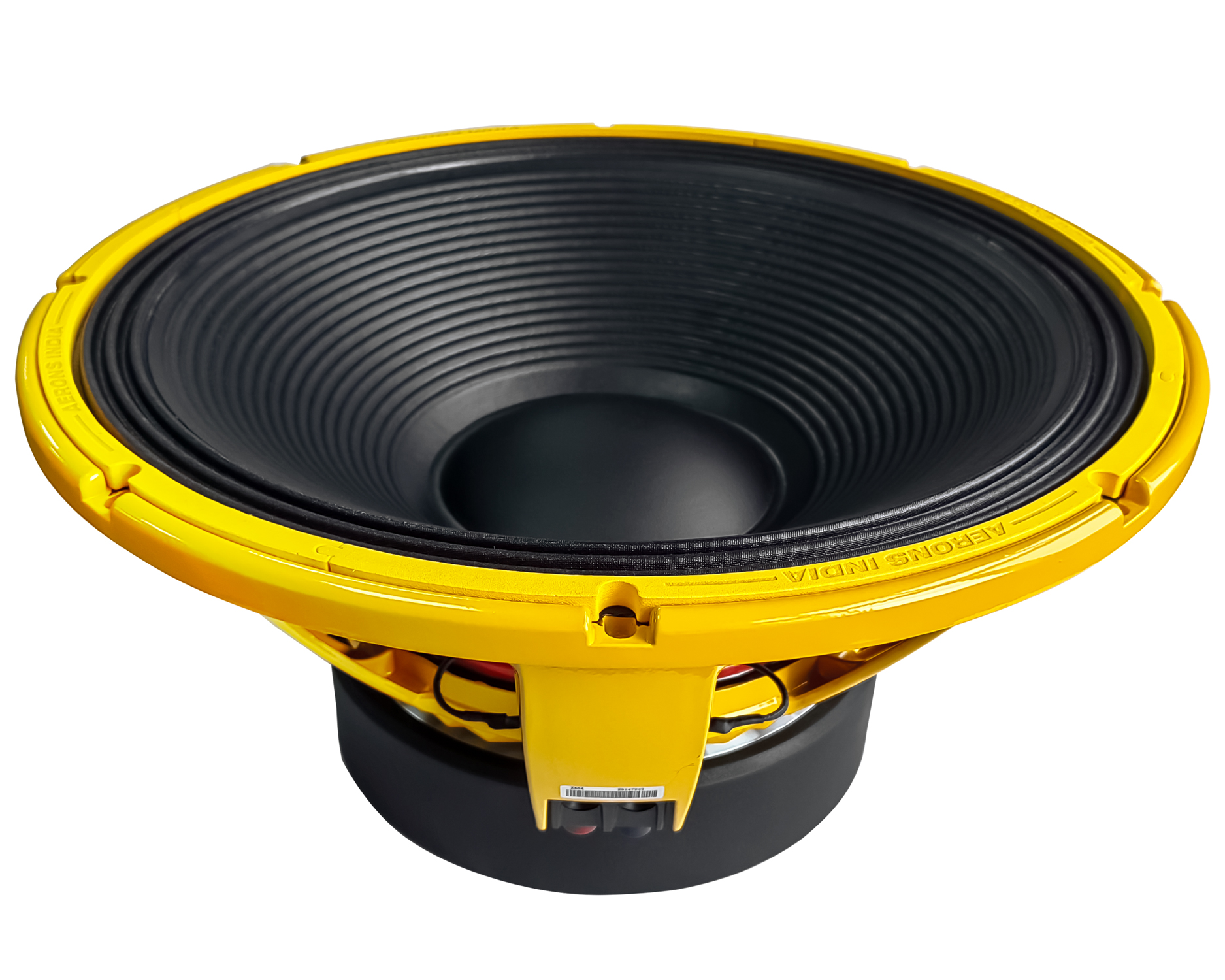

Introducing the Aerons India X454 Beast Subwoofer Driver, engineered for powerful bass and professional sound performance. Designed to handle extreme output, the X454 delivers deep, commanding low frequencies for high-demand audio systems.
Built with a robust dual magnet system and a heavy-duty 4.5-inch voice coil, this subwoofer driver offers excellent control, stability, and long-term reliability. With an impressive 2000W RMS power handling, it produces high-impact bass that remains clean and consistent.
Featuring an 8 Ohms impedance and a wide 32Hz–1kHz frequency response, the X454 integrates seamlessly with professional amplifiers while delivering rich sub-bass and strong mid-bass output. The X454 Beast Subwoofer Driver is the perfect choice for DJs, sound engineers, and powerful PA systems.
|
Nominal Diameter |
18inch |
|
Nominal Impedance |
8ohm |
|
Minimum Impedance |
4.8ohm |
|
Nominal Power Handling |
2000Watts |
|
Continuous Power Handling |
4000Watts |
|
Sensitivity |
97dB |
|
Frequency Range |
32-1000Hz |
|
Voice-coil Diameter |
114.55mm |
|
Voice-coil Material |
APIPS7 |
|
Voice-coil Winding Depth |
30.4 mm |
|
Effective Diaphragm Diameter |
400Mm |
|
Kind of layer |
In/out |
|
Number of layers |
3 |
|
Top Plate Thickness |
14 |
|
Spider |
SILICON |
|
Flux Density |
1.2T |
|
Magnet Diameter |
250*25mm x2 |
|
Magnet Material |
Strontium Ferrite |
|
Magnet Grade |
Y35 |
|
Magnet Gap Depth |
|
|
Resonance Frequency |
Fs |
32Hz |
|
DC Resistance |
Rte |
4.8ohm |
|
Mechanical Factor |
Qms |
15.61 |
|
Electrical Factor |
Qes |
0.317 |
|
Total Factor |
Qts |
0.311 |
|
BL Factor |
BL |
35.11T-m |
|
Effective Moving Mass |
Mms |
348.79gr |
|
Equivalent Cas Air Load |
Vas |
130.67 liter |
|
Effective Piston Area |
Sd |
1.256 m’2 |
|
Max. Linear Excursion |
Xmax |
12.5mm |
|
Half Space Efficiency |
Eff |
1.76% |
|
Efficiency Bandwidth Product |
EBP |
105.42 |
|
Compliance Value |
Cms |
0.051 |
|
Overall Diameter |
465mm |
|
|
|
|
Bolt Circle Dia. |
446mm |
|
Bolt Hole Dia. |
7.0mm |
|
Gasket Thickness |
10mm |
|
Overall Depth |
215mm |
|
Magnet Dia. |
250mm |
|
Net Weight |
20.3 kg |
