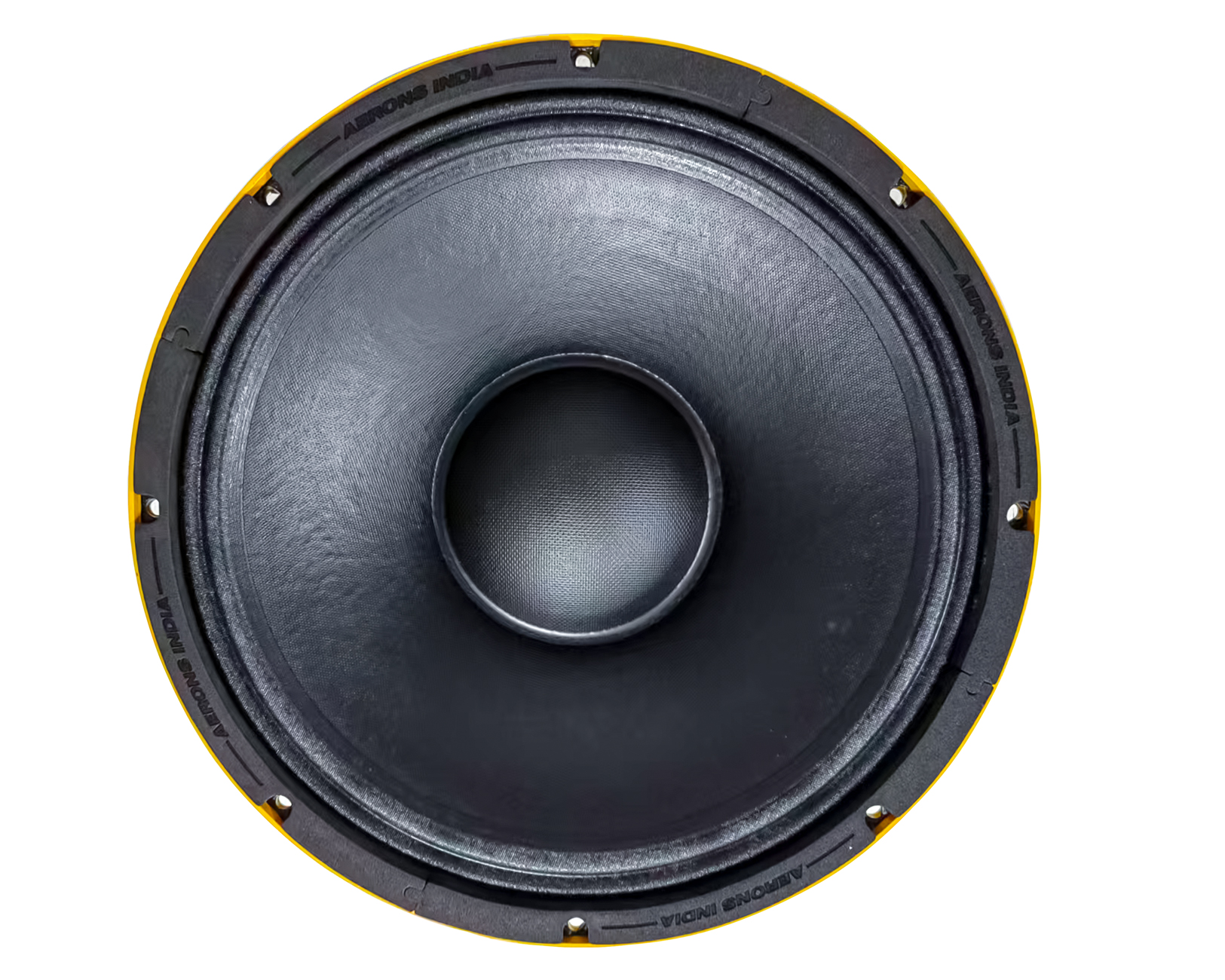

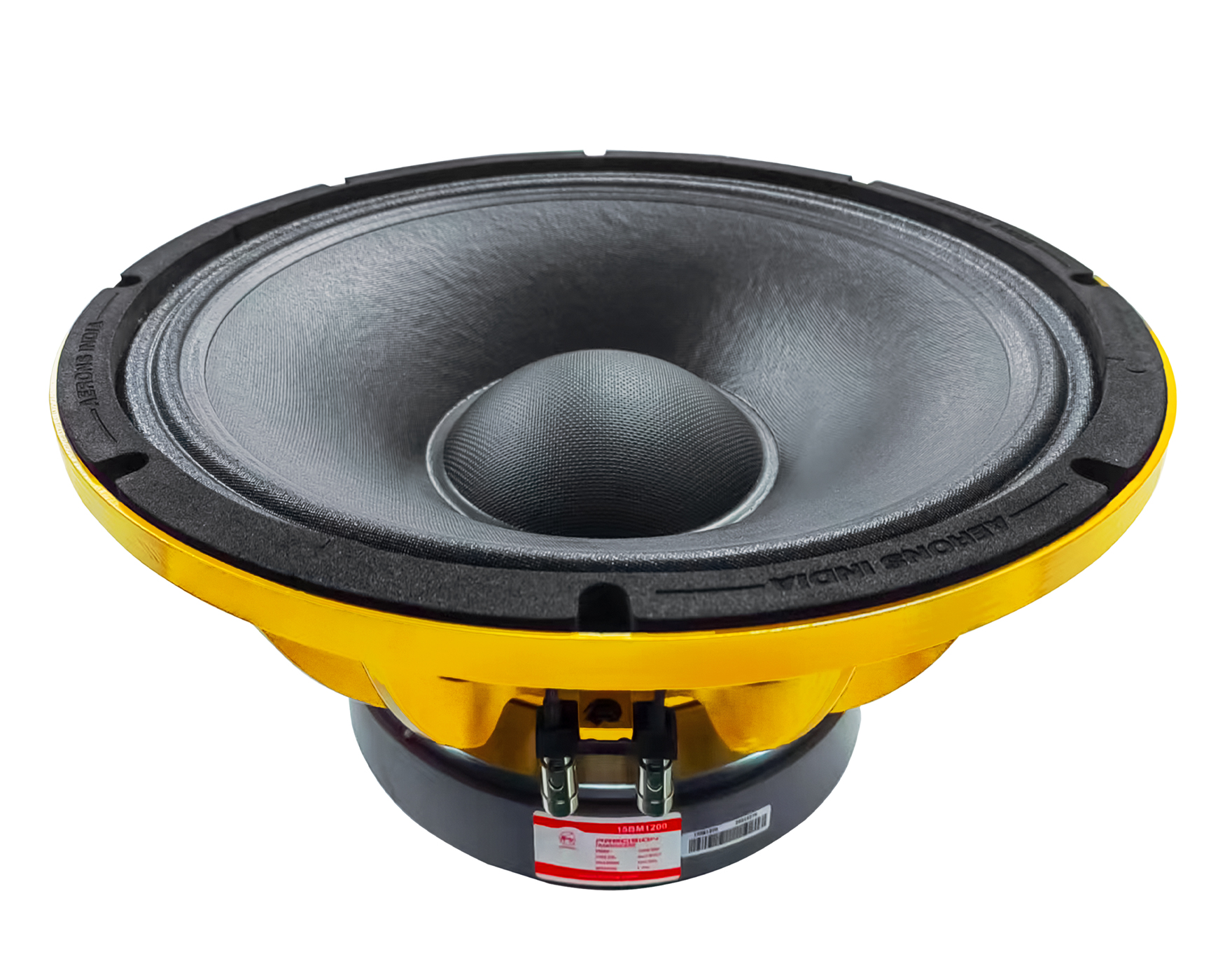

Introducing the Aerons India 15BM1200 15 Inch Subwoofer Driver, engineered for powerful and reliable low-frequency performance. Built to meet professional audio demands, it delivers deep, punchy bass with excellent clarity.
Featuring a robust 4-inch in/out voice coil and an impressive 1200W RMS power handling, the 15BM1200 ensures stable performance even during extended high-output use. With 8 Ohms impedance and a wide 45Hz–3kHz frequency response, it integrates seamlessly into professional sound systems.
Enhanced with ICE (Integrated Cooling Enhancement) Technology, this new launch subwoofer driver is designed for durability, efficiency, and consistent performance in demanding audio environments.
GENERAL SPECIFICATIONS
|
Nominal Diameter |
15inch |
|
Nominal Impedance |
8ohm |
|
Minimum Impedance |
5.1ohm |
|
Nominal Power Handling |
1200Watts |
|
Continuous Power Handling |
2400Watts |
|
Sensitivity |
99.0db |
|
Frequency Range |
45-3.0 KHZ |
|
Effective Diaphragm diameter |
332mm |
|
Voice-coil Diameter |
99.3mm |
|
Voice-coil Material |
CCAW |
|
Voice-coil Winding Depth |
28.6mm |
|
Number of layers |
2 |
|
Kind of layer |
in/out |
|
Magnet Diameter |
220*30mm |
|
Top Plate Thickness |
15 |
THIELE-SMALL PARAMETERS
|
Resonance Frequency |
Fs |
45Hz |
|
DC Resistance |
Rte |
5.1 ohm |
|
Mechanical Factor |
Qms |
6.58 |
|
Electrical Factor |
Qes |
0.345 |
|
Total Factor |
Qts |
0.328 |
|
BL Factor |
BL |
29.85 T-m |
|
Effective Moving Mass |
Mms |
213.6 gr |
|
Equivalent Cas Air Load |
Vas |
62.3 Liters |
|
Effective Piston Area |
Sd. |
0.865m2 |
|
Max. Linear Excursion |
Xmax |
10.5mm |
|
Half-Space Efficiency |
Eff |
1.6% |
MOUNTING INFORMATION
|
Overall Diameter |
393 mm |
|
Mount Buffer Cut-out Diameter |
356 mm |
|
Bolt Circle Diameter |
375 mm |
|
Bolt Hole Diameter |
7mm |
|
Overall Depth |
189 mm |
|
Not Weight |
13.7kg |
